Features:

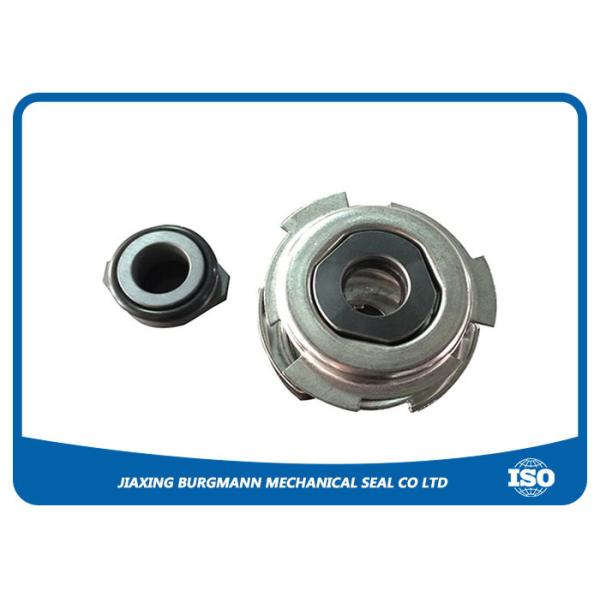

Grundfos mechanical seal GLF is a pump seal which fit for Grundfos
CM horizontal pumps, like CM 1/3/5, CM 10/15/25, this grundfos seal
get 2 shaft size only, 12mm and 16mm.
The popular material for the seal face is carbon and silicon, those
2 material can be used for both rotary and stationary seal face,
the rubber part normally use epdm or . Sometime use tungsten
carbide for the grundfos seal ring, but the cost is higher than
silicon or carbon.
Operating Limited:
| Shaft diameter | 12 and 16mm |
| Pressure | up to 1.2Mpa |
| Temperature | -20~160°C |
| Slidingvelocity | 10m/s |
Material:
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | , EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts | SUS304, SUS316, HAST C |
| Stationary Ring | Car / SIC /TC/Cer |
Advantages:
• Spring unit averted from the product so no sticking and clogging
of the springs
• Safe operation (no fractures) because of seal face locking by
square pin
• Suitable for pressure reversals
• Operation in vacuum without additional seat locking possible
• No damage of the shaft by a dynamically loaded O-Ring
• Small installation sizes
• Best suitable for conversions, no adaptations of the pump
• Insensitive to solid containing and abrasive media
• Advantages of a balanced seal even with plain shafts
• Insensitive to shaft movements because of the stationary design
Application:
• Water and waste water technology
• Chemical industry
• Refining technology
• Dirty, abrasive and solid containing media
• Fugitive hydrocarbons (no API seal!)
• Sticky and stringy media
• Chemical standard pumps
• Sewage pumps
Shipping & Payment Terms:
Port of Loading: Shanghai
Shipping Method: DHL,UPS,FEDEX,TNT, etc
Payment Terms: T/T, Western Union, money gram
Our services:
◆ OEM/ODM orders are available for our factory
◆ Accept customized mechanical seals according to your drawing or
requirements
◆ Small quantity is accepted
◆ Provides excellent quality with competitive price
